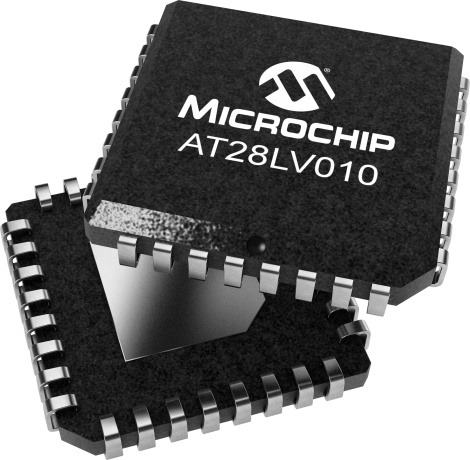

AT28LV010

In Production

High-performance 1M EEPROM offers access times to 200ns with 54mW power dissipation and 3.0V supply voltage. Deselected, CMOS standby current is less than 20µA . It is accessed like static RAM for the read or write cycle without external components, it contains a 128-byte page register to allow writing of up to 128 bytes simultaneously. The EEPROM features Internal error correction for extended endurance and improved data retention. Optional software data protection mechanism guards against inadvertent writes, and an extra 128 bytes of EEPROM enables device identification or tracking.


    Parameter Name
    Value
    Density
    1Mb
    Op. Volt Range (V)
    3 to 3.6
    Read Access Time
    200/250ns
    Documentation
    Data Sheets
    08/01/2009
    327KB
      Application Notes



    AppNote
    11/01/2004
    197KB
    AppNote
    04/01/2013
    79KB
      Brochures



    Brochures
    12/01/2012
    478KB
    Brochures
    12/10/2016
    4660KB
      Quick Start Guides




    Quick Start Guides
    07/01/2014
    114KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    AT28LV010-20JU
    32
    PLCC
    -40C to +85C
    TUBE
    29.33
    28.23
    27.13
    25.67
    24.20

    AT28LV010-20JU-T
    32
    PLCC
    -40C to +85C
    T/R
    29.38
    28.28
    27.18
    25.71
    24.24

    AT28LV010-20TU
    32
    TSOP
    -40C to +85C
    TRAY
    29.32
    28.22
    27.12
    25.66
    24.19

    AT28LV010-20TU-T
    32
    TSOP
    -40C to +85C
    T/R
    29.36
    28.26
    27.16
    25.69
    24.22


    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Similar Devices
    Product
    Memory Size
    Memory Speed
    Package
    Price5K


    CERDIP-32, CLCC-32, CLCC-44, CPGA-30, FLATPACK-32, PLCC-32, TSOP-32
    $22.26


    PLCC-32, TSOP-32
    $22.72
    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    AT28LV010-20JU-051
    1.129000
    2.333333
    32
    PLCC
    11.5x14x3.37mm
    Matte Tin
    e3
    AT28LV010-20JU-235
    1.129000
    1.896000
    32
    PLCC
    11.5x14x3.37mm
    Matte Tin
    e3
    AT28LV010-20JU-630
    1.129000
    1.896000
    32
    PLCC
    11.5x14x3.37mm
    Matte Tin
    e3
    AT28LV010-20JU
    1.129000
    2.333333
    32
    PLCC
    11.5x14x3.37mm
    Matte Tin
    e3
    AT28LV010-20JU-319
    1.129000
    2.333333
    32
    PLCC
    11.5x14x3.37mm
    Matte Tin
    e3
    AT28LV010-20JU-T
    1.129000
    1.896000
    32
    PLCC
    11.5x14x3.37mm
    Matte Tin
    e3
    AT28LV010-20TU-630
    0.372900
    0.372667
    32
    TSOP
    8x18.4x1mm
    Matte Tin
    e3
    AT28LV010-20TU-319
    0.372900
    0.000000
    32
    TSOP
    8x18.4x1mm
    Matte Tin
    e3
    AT28LV010-20TU-235
    0.372900
    0.372667
    32
    TSOP
    8x18.4x1mm
    Matte Tin
    e3
    AT28LV010-20TU
    0.372900
    0.000000
    32
    TSOP
    8x18.4x1mm
    Matte Tin
    e3
    AT28LV010-20TU-T
    0.372900
    0.372667
    32
    TSOP
    8x18.4x1mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
